GPIO buttons – Demo stand

I recently got asked to help out building a demo for one of the projects the team has been working on.

The project uses situational awareness to vary the level of authentication needed to carry out different tasks. Rather than make the person using the demo run all over the place to change location or log in and out of various systems we have stubbed out the inputs and needed a way to toggle them locally. The demo runs on a tablet so we wanted something that could sit near by and allow the inputs to be varied.

To do this I thought I’d have a play with a Raspberry Pi and the GPIO pins. The plan was to attach 5 buttons to the toggle the state of the inputs, the buttons have lights that will show the state.

This would have been a perfect use case for the new Raspberry Pi Zero as it only needs 1 USB port and the GPIO pins, but I couldn’t convince any of the guys on the team lucky enough to grab one to give it up.

The chosen buttons where 5 of these:

http://uk.rs-online.com/web/p/push-button-switches/7027140/

I’d uses something very similar in the past for the MQTT Powered Video Walls in IBM Southbank Client Centre.

The first single button prototype worked nicely after I’d worked out what was needed with pull-up resistors for the buttons and current limiting resistors for the LEDs.

Button prototype

Node-RED was set up to read the state of the buttons from the GPIO pints and to update toggle the LED output the same way.

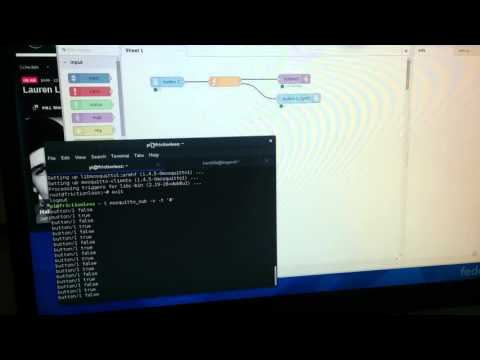

YouTube Preview Image
Node-RED flow to read buttons
Node-RED flow to read buttons

To make the demo totally standalone the rPi acts as a WiFi access point that the tablet connects to. It uses this connection to load the demo and to read the updates from the buttons via MQTT over Websockets.

The USB WiFi adapter available was a Edimax EW-7811UN, The default Linux driver for this doesn’t support HostAPD, luckily there is a page with instructions and a github project with a functional version.

Mosquitto 1.4.2 was installed to act as the the MQTT broker and to support MQTT over websockets so the web app could connect directly to get the button updates.

Having finished off the wiring and configuring the rPi the whole thing was mounted in a display board put together by Andy Feltham.

And ended up looking like this, all ready for a overlay with a description and instructions.

Completed Board
